Micro printer docket "technical parameter"

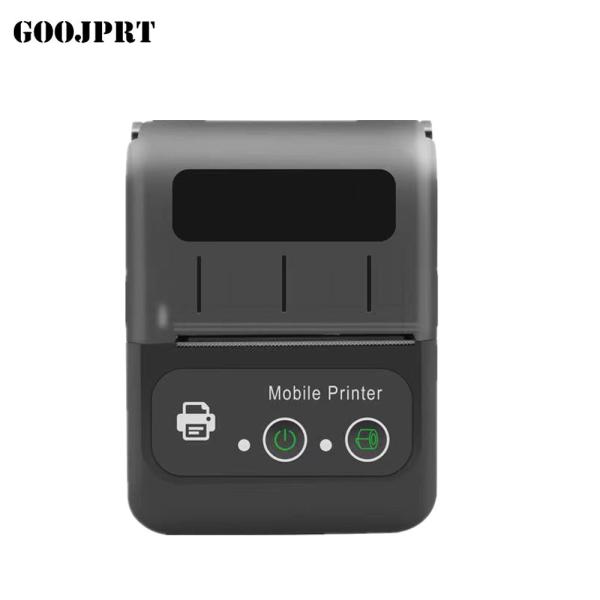

MTP - II portable bluetooth printer (small, beautiful, powerful)
Can support bluetooth print more commercial software
1: recorder for a serial port, no bluetooth, with battery -- -- -- -- --
2: with bluetooth -- -- -- -- --
Product name and model number 2.0/4.0 bluetooth portable receipts thermal printers MTP - II
In the form of thermal performance parameters of the printing way
The output pattern in black and white
Resolution 203 dpi
Printing speed is 50 ~ 80 mm/s
Full recharge to print 150 ~ 280 m
Standby time 100 h
Electricity pool battery capacity is 2000 mah
Standby charging charging ways
Charging time 2 ~ 4 h
Paper type thermal paper paper parameters
Roll the paper form
The paper roll diameter of 40 mm or less
Sheet size 57 MM + / - 0.5 MM (width)
Print the width of the 48 MM + / - 0.5 MM
Paper thickness 0.05 ~ 0.10 MM
Physical parameters of the appearance of the size (length * width * height) 105 * 75 * 37 mm
Yan color gray, white
Heavy volume of 0.5 kg (including printer, chargers, batteries, paper, leather)
Working temperature environment parameters (- 10 ~ 50 ℃
Storage temperature - 20 ~ 70 ℃
Working humidity 20% ~ 50%
Storage humidity 5% ~ 5%
Communications TTL interface USB interface (optional);The DB9 serial port;4.0 bluetooth communication interface
Printing the instruction ESC/POS compatible instruction set (see the "portable receipt printer technology handbook"
Print content, Chinese characters, English, Japanese and other language (optional) to support all series of office software such as Word, EXCEL and PPT to print
Image supports JPG, BMP, and TIF, JPEG format images, such as driving way print without development, support the image grayscale print
Curved line low
Barcode EAN13, EAN8, CODE39, CODE93, CODE128, ITF, CODEBAR, UPC, UPC - A - E


Qr code QRCODE, PDF417
Platform support Windows USB drivers
Ardroid test program
The IOS test program
Linux DEMO
Other performance outfit way paper clamshell type of paper
Lack of paper detection of low
2000 mah lithium-ion polymer battery power supply way
Power alarm when the battery will run out of printer charge indicator light flashing quickly, in order to prompt the user to recharge.
Standard parts 12 v1a charger 1 (the rules and the rules optional) Φ 30 paper roll 1 roll of 2000 mah battery a piece of this user manual
Optional accessories DB9 serial port 1 USB cable 1 the TTL data line 1 (customizable) leather 1 car charger 1
